Steel Products from Falcon Steel
Steel H R SQUARES
Processing Services
:: Saw Cutting
:: Galvanizing
3/8″ through 2″ 20′ Length’s
Steel H R ROUNDS
Processing Services
:: Saw Cutting
:: Galvanizing
3/16″ through 2″ 20′ Length’s
Steel H R FLATS
Processing Services
:: Saw Cutting
:: Galvanizing
:: Hole Punching
1/8 x 1/2 through 2 x 4 20′ Length’s
C F ROUNDS and Flats C1018
Cold Finished Bars:
::Flats
::Rounds
::Hexagons & Squares in AISI C1018, C1045, 1117, 1144, 1215, 12L14, 4040, 8620, ETD150 specs
Steel Angles
Steel Channels
Processing Services
:: Saw Cutting
:: Galvanizing
:: Laser cutting
1 x 1/2 x 1/8 through 18″ x 42.7 20′ & 40′ Length’s
Steel Beams
Processing Services
:: Saw Cutting
:: Galvanizing
:: Beam Splitting
:: Laser Cutting
S Beams 3″ x 5.7# through 15″ x 42.9#
Wide Flange 4″ x 13# through 18″ x 35#
Junior Beams 6″ x 4.4# through 10″ x 9#
Steel Tubing & Pipe
Steel Plate & Sheet
Processing Services
:: Shearing
:: Plasma
:: Oxy-Fuel
:: WaterJet
:: Laser Cutting
A36 3/16″ through 4″
Grade 50 A57250 3/16″ through 2″
T1 3/16″ through 1″
AR400 3/16″ through 1″
A516 GR70 1/4″ through 4″
H.R. Sheet 16ga through 10ga
C.R. Sheet 22ga through 14ga
Galvanized Sheet 24ga through 14ga
Rebar
It’s a simple fact—rebar is the backbone of most construction projects. That’s why we pride ourselves on delivering custom shapes and sizes. Give us your specs, and we’ll get you the rebar you need to take the stress out of your concrete . . . and your job.
Need a particular size? Let us do the work for you by providing custom-cut rebar that is ready to use on arrival.
Expanded Metal
Expanded Metal is a versatile and economical product. Made from a sheet of metal uniformly slit and stretched, forming diamond-shaped openings in the sheet – Expanded is a one piece construction that won’t unravel and under normal circumstances and will hold its shape for many years. The strands and bonds of the diamond-shaped trusses add strength and rigidity. Expanded Metal comes in a standard (raised) or flattened diamond pattern in a variety of gauges, opening sizes, materials and sheet sizes.
Expanded Metal is typically used for screening, ventilating or security as a guard. The openings permit passage of light, air, heat and sound, and sheet is lightweight and easy to fabricate and form. Decorative patterns have the same properties and are used aesthetically. Decorative patterns may be found in applications like retail shelving, signage, partitions, ceiling tiles, and more.
For heavy-duty applications or load bearing requirements, Expanded Metal Grating and Expanded Metal Catwalk are also available in a variety of panel sizes.
Standard
Flattened
Decorative

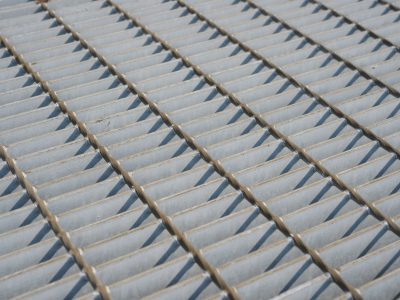

Grating and Bar Grating
Carbon Steel Bar Grating is a nice choice when your project requires a strong material and you are not going to expose the grating to an expressly corrosive environment. Choose from plain or serrated surfaces, galvanized, standard black, bare steel or painted and light or heavy duty welded grating.
Welded grating is joined at the intersection of the bearing bars and cross bars. Welded bar grating is a versatile option for light to moderate loads. When heavy duty loads are present, the heavy duty grating provides a nice option. This is appropriate for highways, airport runways, and bridge floors.
Light duty bar grating ranges in size from 3/4″ x 3/16″ to 2 1/2″ x 3/16″. Heavy duty bar grating ranges in size from 1 1/4″ x 1/4″ to 6″ x 1/2″.
Available Sizes For Light Duty Carbon Steel Bar Grating:
| Bar Size Inches: | Weight Per Sq. Ft: | Sect. Prop. Ft. of Width: |
|---|---|---|
| 3/4 x 3/16 | 5.67 | Sx=0.194 / 1x=0.73 |
| 1 x 1/8 | 5.15 | Sx=0.228 / 1x=0.114 |
| 1 x 3/16 | 7.35 | Sx=0.344 / 1x=0.171 |
| 1 1/4 x 1/8 | 6.2 | Sx=0.358 / 1x=0.223 |
| 1 1/4 x 3/16 | 9.03 | Sx=0.536 / 1x=0.335 |
| 1 1/2 x 1/8 | 7.35 | Sx=0.515 / 1x=0.387 |
| 1 1/2 x 3/16 | 10.94 | Sx=0.773 / 1x=0.579 |
| 1 3/4 x 3/16 | 12.62 | Sx=1.052 / 1x=0.902 |
| 2 x 3/16 | 14.30 | Sx=1.375 / 1x=1.375 |
| 2 1/4 x 3/16 | 15.87 | Sx=1.740 / 1x=1.958 |
| 2 1/2 x 3/16 | 17.55 | Sx=2.148 / 1x=2.685 |
| Note: Sx = (Sec. Mod. Ft Width) 1x = (Mom. of Inertia Ft. Width) |
GRATING TYPES – LIGHT DUTY WELDED STEEL W SERIES
Purlins
Falcon Steel substructural components – Cees, Zees, Hats, Channels, Angles – represent the broadest selection of cold formed substructural components in the industry. Cees and Zees from Falcon are manufactured in LGSI (Light Gauge Structural Institute) sections. LGSI sections have been found to have numerous advantages, including greater ease of installation.
Roofing Products
Commercial
Central Span™ – 2″ Standing Seam Profile
The Central Span™ panel has a traditional flat pan, vertical rib appearance, often preferred by traditional architects for superior appearance and performance. Central Span™ roofs meet the requirements for a wide range of roof slopes, shapes, loads, weather and related conditions. It has many of the features required for architecturally shaped roofs. The Central-Span panel has the capability of being formed over the eave to provide a continuation of the roof down the sidewall to form a fascia.
R-Loc™
This 26 gauge commercial panel is an excellent choice for projects that require commercial grade performance. R-Loc™ is designed to maximize the potential of your structures, specifically the steel frame. R-Loc™ has an added purlin bearing rib, so you can count on easier installation and a more pleasing appearance.
M-Loc
M-Loc™ is a structural roof and wall panel that can be installed directly over purlins or joists. The M-Loc™ panel is available in 26 gauge. This commercial panel has long served customers with lasting durability in commercial type applications.
Horizon-Loc
Horizon-Loc™ is a durable concealed fastener roof system with easy snap together installation. This architectural panel system uses minimally visible fasteners, giving your building a clean, attractive finish. The panel’s easy snap-on ribs attach rapidly with no hand seaming, so installation is less expensive than traditional standing seam.
Precision-Loc®
Precision-Loc® is our 24 gauge commercial/industrial wall and soffit panel. Precision-Loc® is available with one rib (perforated or solid), and solid flat (no ribs).
Central Seam Plus
Central Seam Plus® is a trapezoidal standing seam system designed for commercial and architectural projects. Central Seam Plus® mechanically seamed system begins and ends in the high, reducing the risk of leakage at the rake.
Central-Loc
Central-Loc® is a snap-together trapezoidal roofing system that is an excellent choice for commercial applications. Central-Loc® is manufactured from Galvalume which offers two to four times the corrosion resistance of galvanized steel.
Central-Snap
Central-Snap® is a vertical 1 3/4″snap-lock standing seam panel that is sturdy and fire resistant, making it ideal for architectural and commercial applications. Its Galvalume substrate offers two to four times the corrosion resistance of galvanized steel. 24 Gauge Flat Sheets are also available.
